MONUMENTAL WINDOW

HINGED - PROJECTING - SWINGING - TILT AND TURN - FIXED

Meet our EuroShield™ Window

Discover the future of windows with EuroShield™: Security, innovation and performance in every detail. A masterpiece of innovation and meticulous design, our EuroShield™ line is the fruit of our exclusive dedication to quality and innovation.

This system has a wide variety of glazing and hardware options, and greater aluminum thickness than the Deluxe Window. This European system of diverse solutions provides aesthetics and functionality, weather resistance, hermetic sealing, air permeability, water tightness, exterior noise reduction, excellent ventilation and illumination with natural light. Both the leaf and the frame are cut at 45 degrees, assembled with a stainless steel square machined on the inside.

We have a wide variety of colors and glass to choose from. This window can also be combined with aluminum or glass slat security windows, fixed glazing, different openings in the same system or multiple sashes in one piece.

Casement, projecting, swinging, tilt and turn or fixed openings.

This window can also be manufactured with thermal break (RPT) and bi-color (exterior color different from the interior).

See Monumental Window RPT / Bi-Color for more information.

MONUMENTAL WINDOW

Features of our window

  • 6063 T-5 Aluminum Alloy 6063 T-5 Aluminum Alloy Profiles

  • 2-1/2" wide perimeter sash, thinner than the standard window.

  • Custom fabricated from 12" to 72" wide and from 12" to 72" high, to a maximum of 18 square feet per sheet. Larger sizes should be consulted with our engineering department.

  • Rubber on the frame and perimeter sheet for better sealing.

  • Assembly with aluminum brackets and Stainless Steel screws.

  • Hidden friction hinges in Stainless Steel 304.

  • Multi-point lock and operator available at additional cost.

  • This product can be modified with 7/16", 9/16" or insulated impact resistant glass for additional cost.

  • Fastening of the glass to the profile with structural silicone.

  • Possibility of adding screen rollup for additional cost.

Colors:

  • White, Gray, Bone White, Bronze, Matte Black, Walnut (decorated wood), Light Anodized, among others.

  • Other colors by special order.

Crystals:

  • 7/16" laminated PVB interlayer .090" glass

  • 9/16" laminated PVB or SGP interlayer .090" glass

  • Solar control glazing that provides energy efficiency.

  • 1-1/16" insulated glass (double glazing), used for energy efficiency, thermal and acoustic insulation, and increased safety.

  • Standard colors: Clear, Blue Green, Gray, Bronze, *Milky White (Milk).

  • Other colors by special order.

Interact with our window

Multiple sheets in a single frame.

Variety of openings, possibility of combining multiple openings in the same system.

Get to know our window

Video block
Double click here to add a video with embedded URL or code. Read more about it here

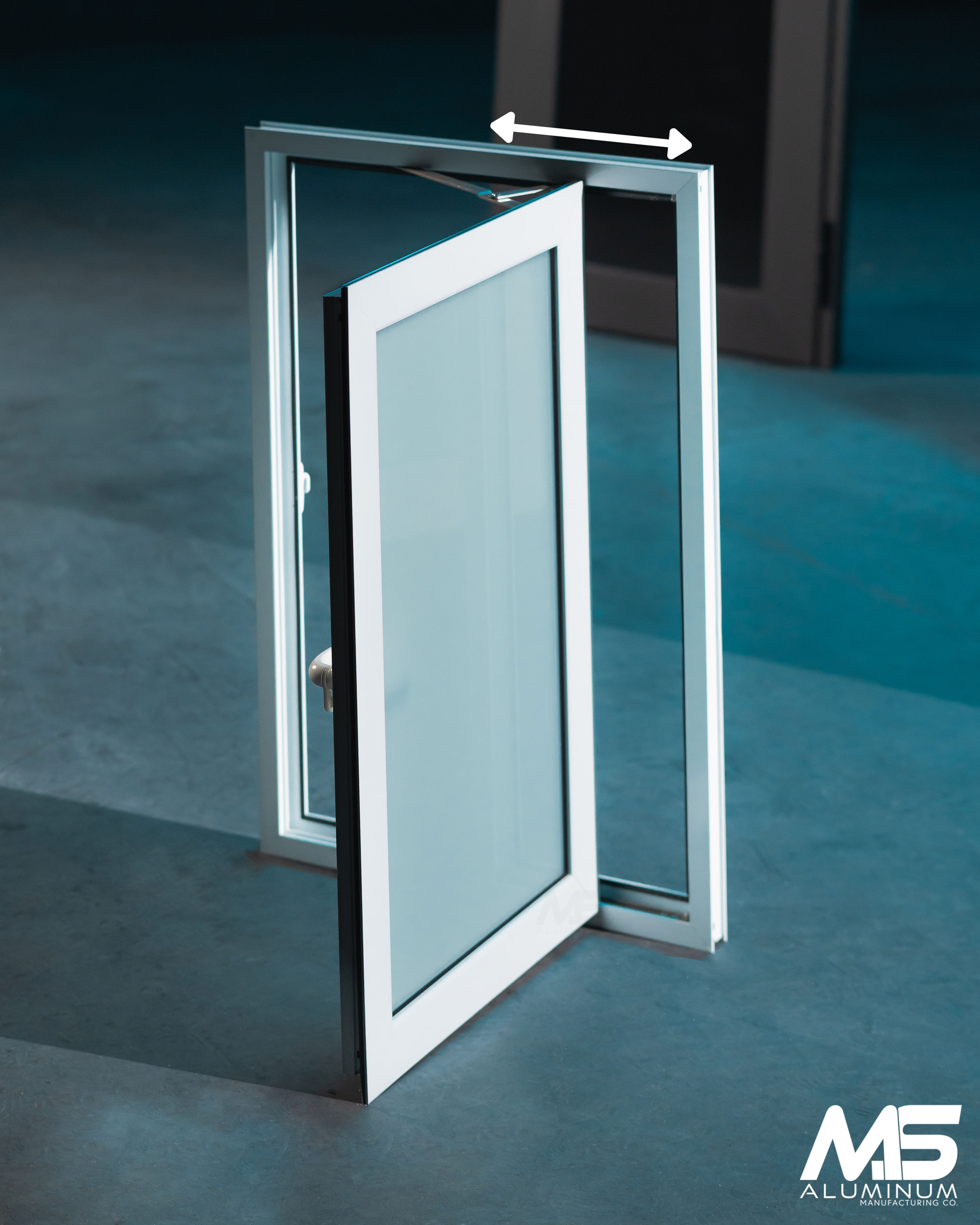

Casement Window

Friction Gozne transfer, allowing cleaning of the outside of the window from the inside of the residence.

If you want this function you must request it at the time of placing your order.

  • This option has a size and weight limit per sheet; it should be consulted with our technical department at the time of quotation.

Photo Gallery


Learn about our RPT Monumental Window

Meet our Monumental RPT Line of the Euro Series family. Window with thermal break, double glazing and possibility of bi-color.
